Soft84

Introduction

Soft84 is a calculator app for Android OS devices. You can install it from Google's Android Market. It is inspired by Hewlett Packard's HP 48 calculator, though Soft84 is missing a lot of features. At the moment it is a capable RPN scientific calculator with units and rudimentary programming features.

It uses several libraries for arbitrary precision arithmetic: GNU Multiple Precision (GMP), GNU MP Floating/Rounding (MPFR), and GNU MP Complex (MPC). In principle it can be an arbitrary precision calculator, though at the moment it is hard-coded to 100 decimal digits of precision.

Soft84 is released under the GPL V2. If you are really interested in the source, let me know and I will provide you access to my git repository. But here is a source snapshot from 2012/01/16

User interface

Soft84 uses what is known as Reverse Polish Notation. This means that you enter numbers onto a stack, and then perform operations on that stack. Most operations take the top two elements of the stack (though physically displayed at the bottom of the display) and combine them to form a new element on the stack that replaces them. For example, to compute 123+321, you would type 123 then enter, then 321, then +. The answer 444 would be on the top of the stack.

Many buttons have multiple functions, in which case the secondary function (yellow) can be accessed by long-pressing the button.

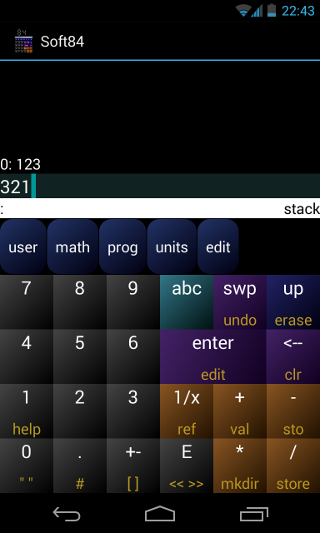

Starting at the top, here is a description of the elements of the Soft84 interface:

stack display
The top portion of the display contains the current contents of the stack. The "top of stack" (where operations occur) is displayed at the bottom of the area. The 0: represents the depth of the stack -- higher numbers mean it is deeper (lower) in the stack. If the stack is too big to fit on the screen, this area is finger-scrollable. If you double-tap on an entry on the stack, then its value will be duplicated onto the top of the stack.
status bar
The left part of the status bar indicates the current variable path, ":" represents the root (the top-level). The right part of the status bar indicates the current mode. "stack" is the default stack view, "edit" is a view for editing compound objects, and several modifiers which will affect your next keypress will also be displayed here.
variable buttons (blue)
This area is a horizontally-scrollable list of the contents of the current directory. Buttons that are rounded are subdirectories, buttons which are square (none shown here) are variables within the directories. Clicking on a subdirectory button enters that subdirectory. Pressing on a variable button causes the contents of that variable to be pushed onto the stack, or executed if the button contains a << >> program. Long-pressing a variable button causes the contents of the variable to be pushed onto the stack, even if it contains a << >> program. The user directory is for your own storage (much like memory on a traditional calculator), math provides access to more advanced mathematical operations (such as lg and sin), prog holds commands useful for programming, units has a lot of units (like inches, seconds, etc), and edit provides a couple commands useful when in edit mode.
up/erase button (blue)
Goes to the parent directory within the variable filesystem.
Long press for erase, which changes to "ERASE" mode, erasing the next variable you tap on.
abc button (cyan)
Brings up the Android keyboard, for entering characters and punctuation, such as the name of a variable. When you are done you can generally clear the Android keyboard with the back button.
swp/undo button (purple)
Swaps the top two elements of the stack.
Long press for undo, which restores the stack to the state just before the previous command. Note that it only restores the stack -- any changes to the variables are irreversible.
enter/edit button (purple)
Terminates the current entry area, causing its result to be pushed on the stack or inserted into the edit buffer. It also can be used to terminate edit mode. If the edit buffer is empty, it dups the top of the stack.
Long press to edit the top member of the stack.
<--/clr button (purple)
Backspace within the current entry area, or pop from stack (discard top value).
Long press to clear all of the elements on the stack.
orange buttons
Basic arithmetic operators, including inversion.
ref (orange 1/x)
Long press to change to "REF" mode, which will push the name of the next button that you tap onto the stack.
val (orange +)
Long press to change to "VAL" mode, which will push the value of the next variable that you tap onto the stack. This is useful for variables that contain << >> programs, so that you can view or edit the program instead of executing it.
sto (orange -)
Long press to change to "STO" mode, which will store the value from the top of the stack into the next variable that you tap.
mkdir (orange *)
Long press to create a subdirectory according to the name on the top of the stack. If a string name was entered, it will be created in the current directory. If a symbolic name (like from ref) is on the stack, that name will provide the path. (dir -- )
store (orange /)
Long press to take two arguments off the stack, the name of the variable (on the top of the stack) and the value to store into it. (value name -- )
grey buttons
Basic numeric entry buttons, including decimal point, sign inversion (for negative numbers), and E (base 10 exponent). For example, to enter one million (1 with six zeros after it), you may enter 1E6.
help (grey 1)
Long press to visit this help webpage in your Android browser app.
" " (grey 0)
Long press to begin string entry mode, for entering string literals.
# (grey .)
Long press to begin integer-entry mode. Integers can be of an arbitrary length and are always presented precisely, but cannot have a decimal point.
[ ] (grey +-)
Long press to begin list-entry mode. In list-entry mode, you can tap on a point within the list to move the cursor. Values typed in will be inserted before the current cursor position. Backspace will delete the thing before the cursor.
<< >> (grey E)
Long press to begin program-entry mode. The program editor is very similar to the list editor. Programs are basically lists of commands which are executed in order. Note that in the editor, if you execute an operator like + or sin, a call to that operator is inserted.

Working with units

Under the :units directory, most of the common scientific units of measurement can be found. When performing arithmetic on numbers with units, Soft84 attempts to maintain the units sensibly. For example, if you have 1_m and 2_s on the stack, then you hit / (divide), then Soft84 will compute 0.5_m/s.

To add a unit to a number which is on top of the stack, just navigate to the unit in the :units directory, and then tap on the unit. If the number already has units, then this new unit will be effectively multiplied by the existing units.

To put a unit in the denominator, you would tap 1, then tap the unit, then / (divide). For example, to specify that a number is a rate over time, you may divide by 1_s.

To convert to a specified unit, simply tap 0 and then build up the unit, then tap + (plus). For example, if you have 1_yd on the stack, and you were to add 0_ft to it, then it would convert that value to 3_ft.

To normalize units, you would tap :units:norm (which is at the far right of the :units list). This attempts to reduce the unit specification to the simplest form involving base SI units. For example, 1_mph is normalized to 0.44704_m/s.

Editor

When entering lists ([ ]) or functions (<< >>), the list editor is used. You can also edit a list that is on the stack by long-pressing the enter key.

The list editor acts on tokens. The cursor is on the highlit token. New tokens are input before the cursor. To input a new numeric token, press the number buttons until your number is complete, then hit enter. To input a variable or operation name, press the corresponding button. To input the value of a variable, long-press its button.

To edit the value under the cursor, hit the enter key. If you hit enter on the last token of the list (either ] or >>), then the editor will close.

Pressing backspace (<--) will delete the token before the cursor.

Special editor commands are available under the :edit directory. The stk-> button temporarily suspends the editor, allowing you to perform stack computations. When you are done and the desired value is on the top of the stack, select done and it will input the value from the top of the stack into the editor. In the editor, the done button closes the editor.

Within the editor, the ref mode causes the REF: form of a variable's name to be input. The val mode causes the value of the variable to be input. The sto mode causes the REF: form to be input, followed by an invocation of the store command.

Programming

At its core, Soft84 is an interpretter for a simple language with a typed stack, not dissimilar from "Reverse Polish Lisp" (RPL) used by some HP calculators.

In this language, most everything is just a list of tokens. Tokens either reference a variable (word), or provide a literal value which is pushed onto the stack when executed.

If a token begins with alphabetic or colon (:), then it is a variable reference. If there is no colon, the object is first searched for in the current directory, then in the (hidden) :builtins directory, and then as a fall-back it is assumed to be a not-yet-created item in the current directory. When a variable reference is executed, if the variable contains a function then that function is executed. If the variable does not contain a function, its value is pushed onto the stack. If the variable's symbol is prefixed with "REF:" then the name of the variable is pushed onto the stack (i.e., for use with "store").

If a token begins with a digit, decimal point (.), or minus sign (-), then it is a floating-point number. It may have a base-10 exponent suffixed such as E6. After the number's value is fully specified an optional unit can be provided, of the form _unit.

If a token begins with a quote mark (") then it is a string literal which can contain \r, \n, \t, \\, \" or any regular character and terminates at the next unescaped ".

If a token begins with a pound sign (#) then it is an integer literal. Integer literals cannot have units, or exponents, or decimal points, though they can be negative. Integers are useful for precise arithmetic (such as currency), for logical values (#0 is the prefered "false" for conditional execution), and for binary arithmetic, and for base conversions (XXX - not yet).

If a left bracket ([) is encountered, then the tokens up to the matching right bracket (]) are collected into a list, which is then pushed onto the stack as a literal.

If a code start token (<<) is encountered, then the tokens up to the matching code end token (>>) are collected into a list known as a function, which will be executed if the variable it is stored in is called, or if the :prog:eval command is executed.

Dictionary

This is a partial dictionary of the builtin words in this language. The parenthesized stack notation (x -- y) indicates the contents of the stack before (x) and after (y) the word is executed. In the stack descriptions, the rightmost element represents the top of the stack.

All of these words are actually defined in the :builtin path (which is mirrored under :prog:builtins), but are accessible in an organized fashion through the prog or other menus.

Note that branching words do honor nesting properly.

:prog:eval (func -- )
Executes the value at the top of the stack (such as a function literal).
:prog:stack:dup (x -- x x)
Duplicates the value on the top of the stack.
:prog:stack:drop (x -- )
Discards the value at the top of the stack.
:prog:stack:rot (a b c -- b c a)
Takes the value two deep in the stack, and moves it to the top of the stack.
:prog:stack:over (a b -- a b a)
Duplicates the value that is just below the top of stack.
:prog:stack:nip (a b -- b)
Discards the value that is just below the top of stack.
:prog:stack:tuck (a b -- b a b)
Places a copy of the value at the top of stack two deep into the stack.
:prog:stack:pick (a0 .. an n -- a0 .. an a0)
Duplicates the value that is at depth n in the stack.
:prog:stack:roll (a0 .. an n -- a1 .. an a0)
Moves the value that is at depth n in the stack to the top of stack.
:prog:var:recall (name -- value)
Replaces a variable name on the top of the stack with the value of the named variable.
:prog:var:store (value name -- )
Stores the value just below the top of the stack into the variable which is named on the top of the stack.
:prog:var:mkdir (name -- )
Create a new subdirectory to hold variables.
:prog:var:chdir (name -- )
Enter a subdirectory.
:prog:var:erase (name -- )
Erase a variable (can only erase directories once they are empty).
:prog:var:order (list -- )
Takes a list of the variables in the current directory and re-orders the directory to match the order of the list.
:prog:test:== (x y -- x==y)
Pushes #1 onto the stack if the top two values are equal, or #0 otherwise.
:prog:test:!= (x y -- x!=y)
Pushes #1 onto the stack if the top two values are not equal, or #0 otherwise.
:prog:test:< (x y -- x<y)
Pushes #1 onto the stack if the value just below the top is less than the top of stack, or #0 otherwise.
:prog:test:> (x y -- x>y)
Pushes #1 onto the stack if the value just below the top is greater than the top of stack, or #0 otherwise.
:prog:test:<= (x y -- x<=y)
Pushes #1 onto the stack if the value just below the top is less than or equal to the top of stack, or #0 otherwise.
:prog:test:>= (x y -- x>=y)
Pushes #1 onto the stack if the value just below the top is greater than or equal to the top of stack, or #0 otherwise.
:prog:branch:if (cond -- )
If the condition on the top of stack is zero, then execution branches to the word just after a following then or else, whichever comes first. If it is non-zero, then execution continues on the next word after if. For example:
if "true" else "false" then
will push "true" on the stack if the top of stack is non-zero, or "false" if it is zero. Or the false clause may be omitted:
if "true" then
:prog:branch:else ( -- )
Branch to the word just after a following then.
:prog:branch:then ( -- )
This word has no effect when executed, it is just a label for if or else to branch to.
:prog:branch:for (n -- n-1)
If the value on the top of the stack is greater than zero, then it is decremented and execution continues to the body of the loop. If it is less than or equal to 0, then it is dropped and execution branches to the word after a following next word. For example:
5 for dup next
Will put 4 3 2 1 0 onto the stack.
:prog:branch:next (n -- n)
Branches to the preceding for word, re-testing the top of the stack and decrementing it if non-zero. If it is zero, then execution continues after next.
:prog:branch:begin ( -- )
begin merely provides a location for subsequent until or repeat words to branch to.
:prog:branch:until (cond -- )
If the top of stack is zero, then execution branches to the preceding begin word. If it is non-zero, then execution continues at the next word after until. For example:
begin ... done? until
Loops until the word done? evaluates to a non-zero value.
:prog:branch:while (cond -- )
If the top of stack is zero, then execution branches to the word after a following repeat word. If the top of stack is non-zero, then execution continues at the next word after while. For example:
0 REF:user:i store begin ... :user:i 5 < while :user:i 1 + REF:user:i store repeat
executes the body of the loop (...) 5 times, with :user:i holding the values 0 1 2 3 4 in sequence.
:prog:branch:repeat ( -- )
If repeat is executed, then execution branches back to the preceding begin word.

Change log

2013/11/25 Version 0.10: Fix crash in landscape mode.

2013/11/24 Version 0.09: Fix backspace/focus issues with Google Keyboard (IME). Shorten displayed variable names when clever. Long click on variable for value.

2013/11/16 Version 0.08: Add flow-control words in :prog:branch (if/else/then, for/next, begin/until/while/repeat). Add comparison words in :prog:test (==, !=, <, >, <=, >=). REF/STO modes work in the editor now. Reorganize menus a little. Entry and stack display tweaks.

2013/11/09 Version 0.07: Add long-press to access secondary functions (instead of deprecated Android "menu" button). Double-click on stack element to push it onto the top. Flesh out :prog:stack with rot, over, nip, tuck, pick, and roll. A few visual tweaks.

2012/03/19 Version 0.06: Fix bugs, update to new Android SDK.

2012/01/02 Version 0.05: Fix a couple nuissance bugs.

2011/12/12 Version 0.04: Fixed a bunch of obnoxious quirks. Especially, will not generate pages of "err:writeprotect" on upgrade (hold down backspace to clear these).

2011/12/11 Version 0.03: Added "undo" button, much improved "menu" functionality, painless upgrades (no need to clear user memory anymore).

2011/12/10 Version 0.01: Added support for modifying variables, such as in the "user" directory.
